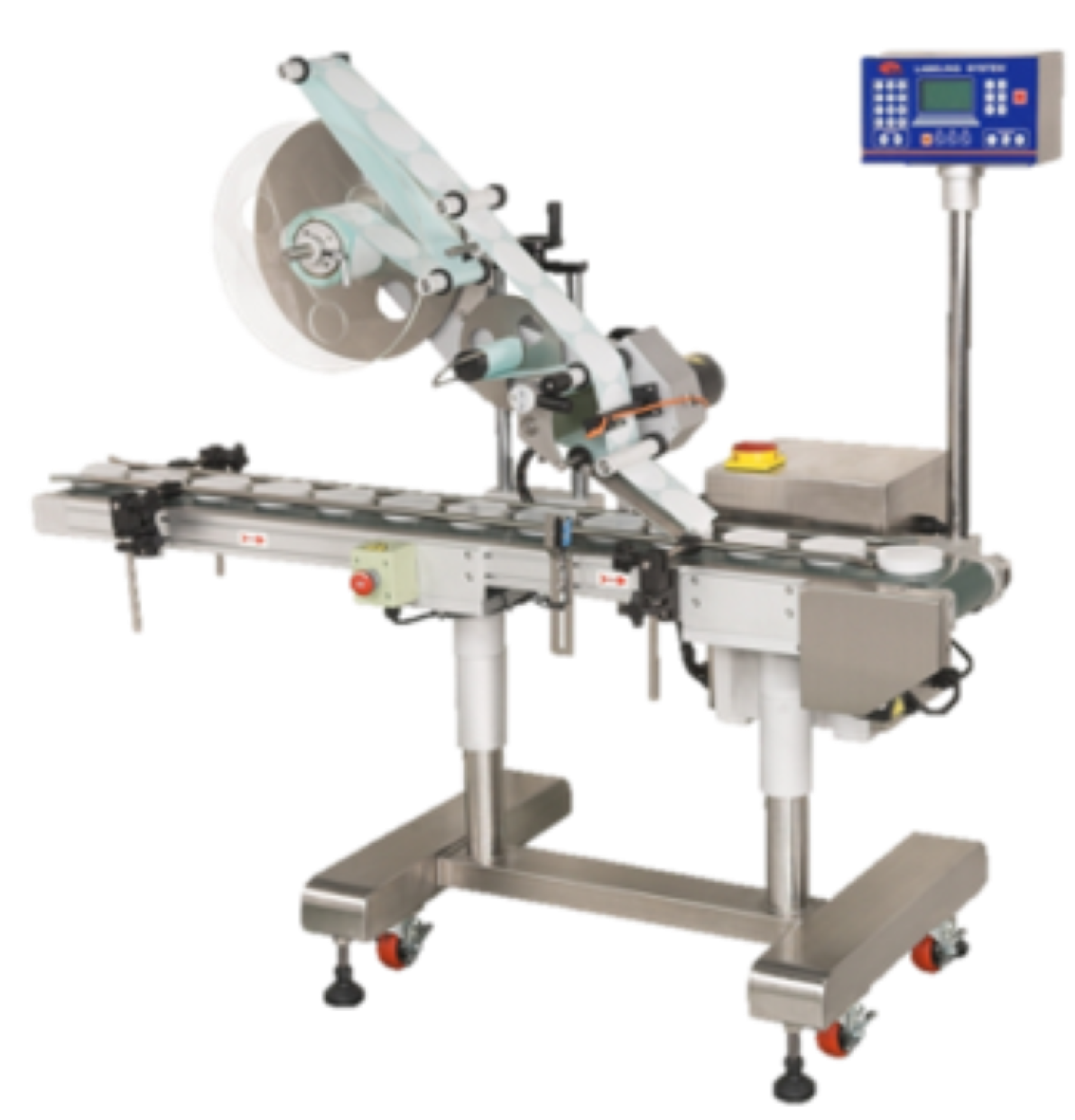

Automatic Top Labeling Machine

Top Labeling Machine is suitable for horizontal and flat-surface labeling.
The machine all made up of stainless steel and aluminum alloy from main board, main frame, conveyor belt table, legging, to interface. Main frame is qualified according to G.M.P standard.
Automatically detect the length and label positioning of containers to prevent mislabeling.
System notifies the end, shortage, broken of label and has the function of counting.

Model	CY-1000A
Label Length	10-300 mm.
Label Height	20-135 mm.
Label Reel (I.D.)/(O.D.)	76 mm. / 360 mm.
Product height	20-200 mm.
Product width	10-200 mm.
Capacity	10-350 ppm (depending on label length)
Power	110V/220V, 50Hz/60Hz
Dimension (WxLxH)	750x1500x1500 mm.
