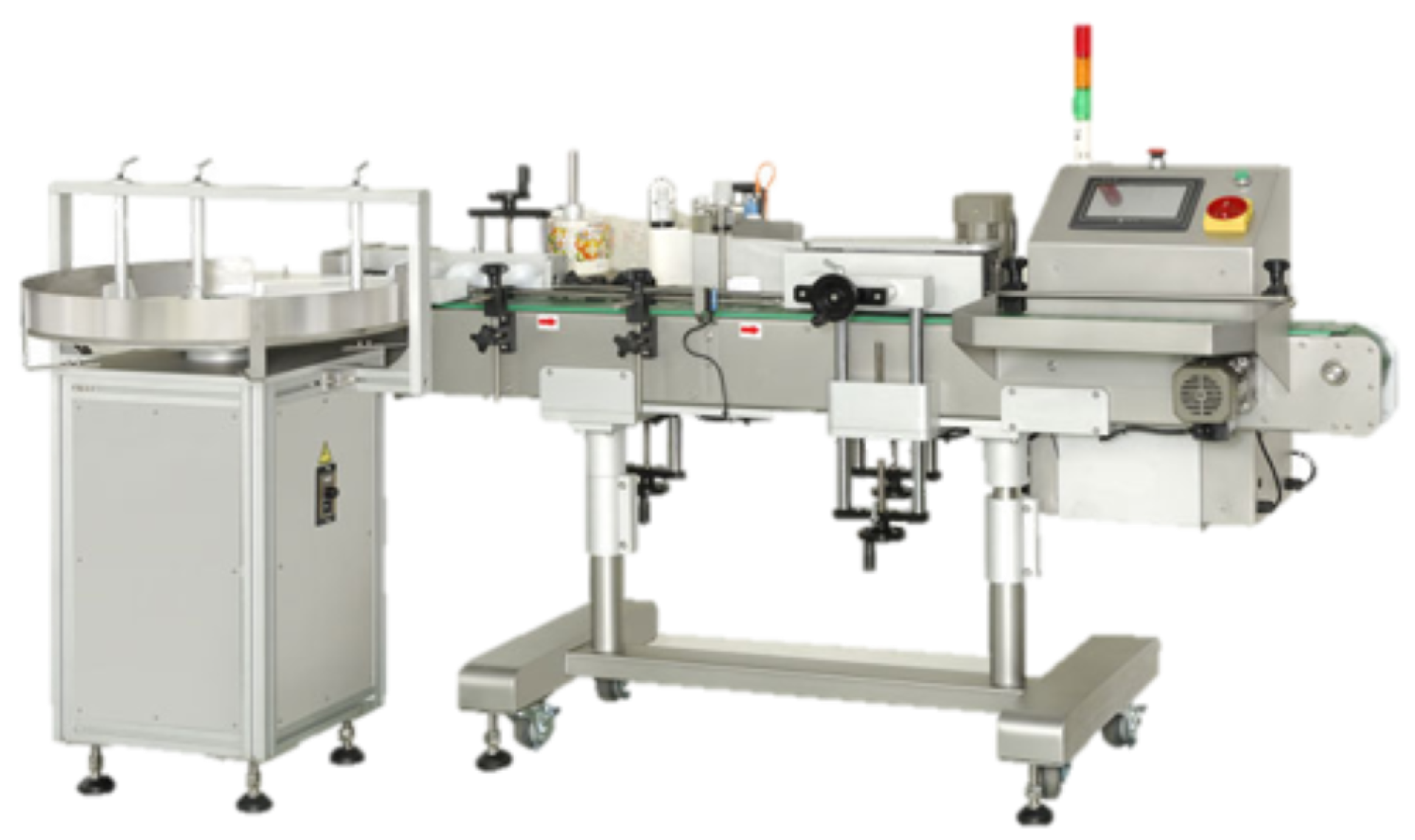

Automatic Wrap-around Labeling Machine
- Apply the label on all kinds of cylinder in semi- or fully wrap-around.
- The machine all made up of stainless steel and aluminum alloy from main board, main frame, conveyor belt table, legging, to interface. Main frame is qualified according to G.M.P standard.
- Automatically detect the length and label positioning of containers to prevent mislabelling
- Label position, height, and angle can be adjustable by hand wheel.
- System notifies the end, shortage, broken of label and has the function of counting.
| Model | CY-2000 |
| Label Length | 10-320 mm. |
| Label Height | 20-135 mm. |
| Label Reel (I.D.)/(O.D.) | 76 mm. / 360 mm. |
| Product height | 20-250 mm. |
| Product width | 20-250 mm. |
| Capacity | 10-200 ppm (depending on label length) |
| Power | 110V/220V, 50Hz/60Hz |
| Dimension (WxLxH) | 1050x2000x900 mm. |
